Condenser - ALEX

There are two types of condenser that we can manufacture. Parallel condenser and serpentine condenser, for condenser product, we only do the universal condenser, sizes as specify below.

Available Thickness : 19mm, 22mm, 26mm, 32mm and 44mm. for the serpentine condenser

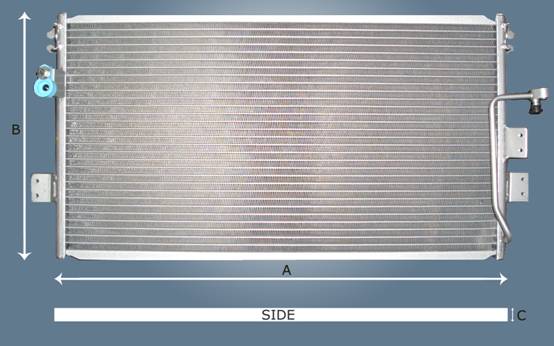

Condenser ALEX (parallel)

Condenser ALEX (parallel)
A B C Inlet/Outlet
460 309 18 ¾ - 5 / 8
530 309 18 ¾ - 5 / 8
580 309 18 ¾ - 5 / 8
460 349 18 ¾ - 5 / 8
530 349 18 ¾ - 5 / 8
580 349 18 ¾ - 5 / 8
660 349 18 ¾ - 5 / 8
530 409 18 ¾ - 5 / 8
635 409 18 ¾ - 5 / 8
710 409 18 ¾ - 5 / 8

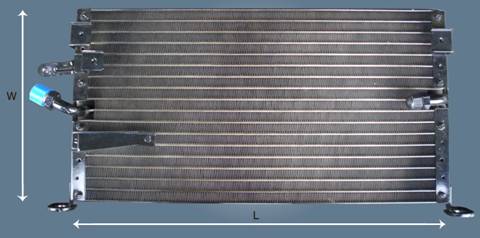

Condenser ALEX (serpentine)

Condenser ALEX (serpentine)
Size W L Fin height
10 x 18 269.6 460 16 mm.
10 x 21 269.6 530 16 mm.
10 x 23 269.6 580 16 mm.
12 x 18 311.6 460 16 mm.
12 x 21 311.6 530 16 mm.
12 x 23 311.6 580 16 mm.
12 x 25 311.6 635 16 mm.
14 x 18 353.6 460 16 mm.
14 x 21 353.6 530 16 mm.
14 x 23 353.6 580 16 mm.
14 x 25 353.6 635 16 mm.
